Configuring the Email Gateway for Lotus Notes
Now that the Domino server and Notes have been configured, you must configure the Zetafax Mail Gateway. First shut down the Zetafax Server service or application.
1.Start up the Zetafax configuration program.
2.Browse to the Server settings section, and double click the Email Gateway option:
3.Click 'Add Email…'. In the list of Available Drivers select 'Lotus Notes' then click 'Add>>' then 'OK'.

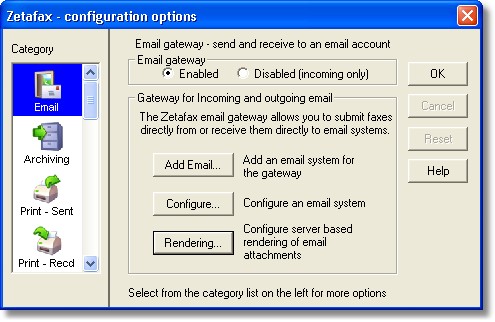

4.You will now be back to the 'Zetafax – Configuration options' dialog box. Click 'Configure…'

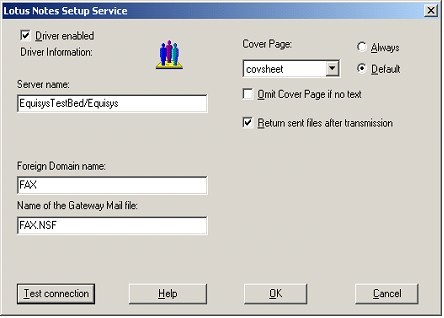

5.Under 'E-Mail systems' select 'Lotus Notes' then click 'Setup'. The 'Lotus Notes Setup Service' dialog box will be displayed (as below).
6.From here administrators can select the default cover sheet that will be used for all submitted faxes from this Domino server.

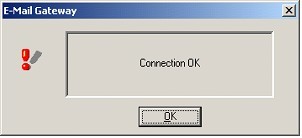

7.Enter the name of the Domino server then click 'Test Connection'. If the server and Notes client have been configured correctly then you will receive the following confirmation message.
8.Click 'OK', then 'OK' again, you will now be back to the 'Zetafax – Configuration options' dialog box. Click 'Rendering…'
9.In the list of 'Available Applications' select 'Microsoft WordPad 1.0' click 'Install>>' then click the 'Rendering' tab. Once presented with rendering options click the 'Applications' tab then 'OK' to exit from the rendering options dialog box.
10.Note: for further information on rendering applications, see Configuring further rendering options.

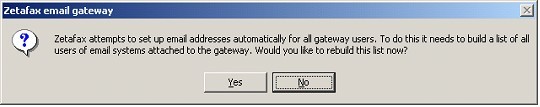

11.You will now be back to the 'Zetafax – Configuration options' dialog box. Click 'OK'. You will be prompted with the following option.

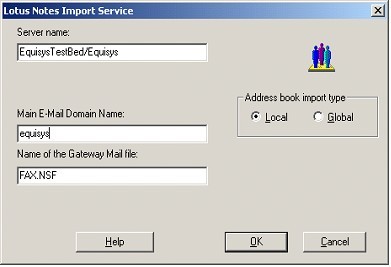

12.Click 'Yes'. When prompted with 'Lotus Notes Import Service' enter the server and E-Mail Domain names of the Domino server then click 'OK' as below:
13. Zetafax has now exported a list of current Domino users. You will be prompted to create new Zetafax users. At this point click 'No'. You will be prompted to enable users at this point, again click 'No'. The configuration of the E-mail gateway is now complete.
