Configuring the Zetafax email gateway rendering options for SMTP





You now need to configure the rendering options for the email gateway.



•In the Email gateway configuration dialog, click the Rendering. button.

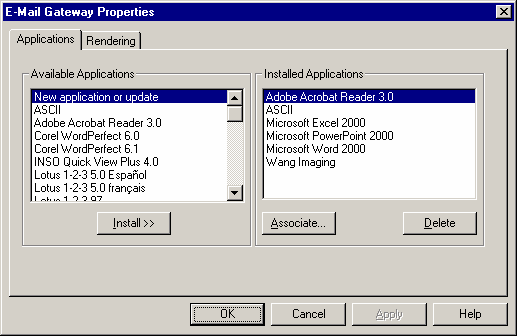

The Email Gateway Properties dialog provides two panels of settings: Applications and Rendering.



Applications tab



The options on this tab allow you to register the applications you have installed on the Zetafax Server PC with the gateway. Typically, these are the most common applications used by your network users to send faxes:



Apps_for_Rendering



If a network user attempts to send an email message with an attachment created by an application which has not been registered or installed on the Zetafax Server PC, the email gateway will be unable to process the message.



You will not be allowed to register an application from this dialog unless it has already been installed on the Zetafax Server PC. You should check that any rendering application you configure can be run without any dialogs being invoked or errors displayed on start up or shut down.



Note: Within this dialog, numerous versions of the same program are listed. It is important that the version of each application you specify exactly matches the version you are using on the Zetafax Server PC.



If users on your network are using multiple versions of the same applications, such as Office 2003, or Office 2010, you should install the latest version of the software on the Zetafax Server PC to generally ensure backwards compatibility.



You must install the ASCII driver as an absolute minimum. This is the driver which converts the text of the email message itself.



Rendering tab



This allows you to select the quality of rendering you require.



You must click on this tab the first time to install the gateway's rendering printer driver. The email rendering subsystem printer driver will then become visible the next time you start the Print Manager.



The printer driver will not be installed successfully under Windows XP Professional, Windows 2003 unless the user account which you are currently using has administrator privileges.



When you have configured the Applications and Rendering settings:



•Click the OK button.



The Email gateway configuration dialog reappears.
